7 seg display
Description
Digit number: single digit-9 digits or OEM available
Dight height: from 0.28'' to 8''
Digit type: 7 segment/ 14 segment/ 16 segment
Emitted color: red, orange, pure green, blue color, yellow, yellow green, white etc. upon your requirement
Common cathode/anode upon your requirement
Surface color: black/ gray/white color

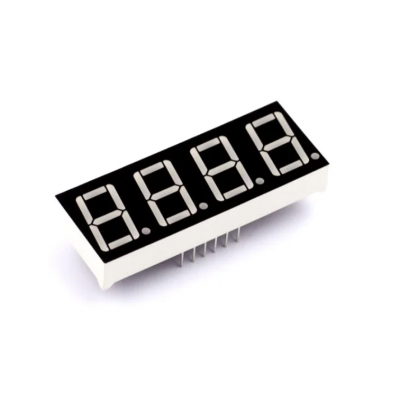

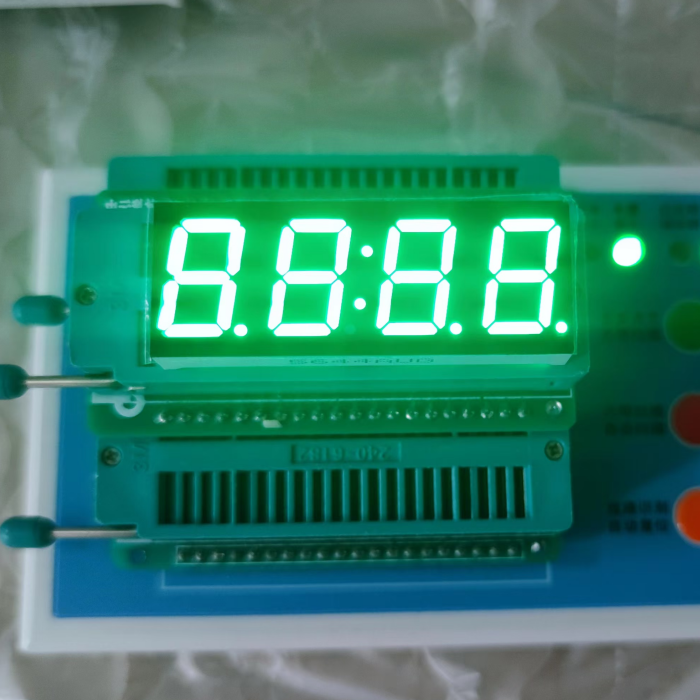

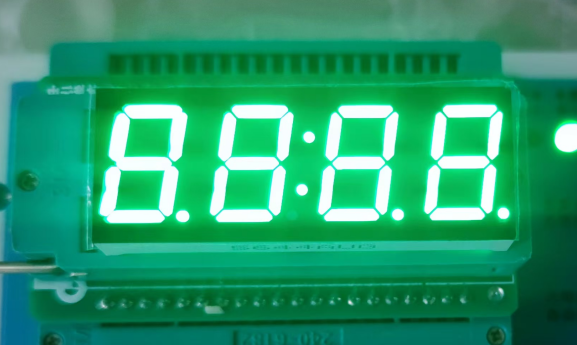

7 Seg Led Display
Parameters
| Digit Height | 0.56 inch | Screen Size | 50.3x19x8mm |
| Emitted Color | Pure Green Color | Luminance | 250mcd |
| Wavelength | 525nm | Face Color | White/black/gray color |
| Epoxy Color | Water clear | Driving Voltage | 5v |

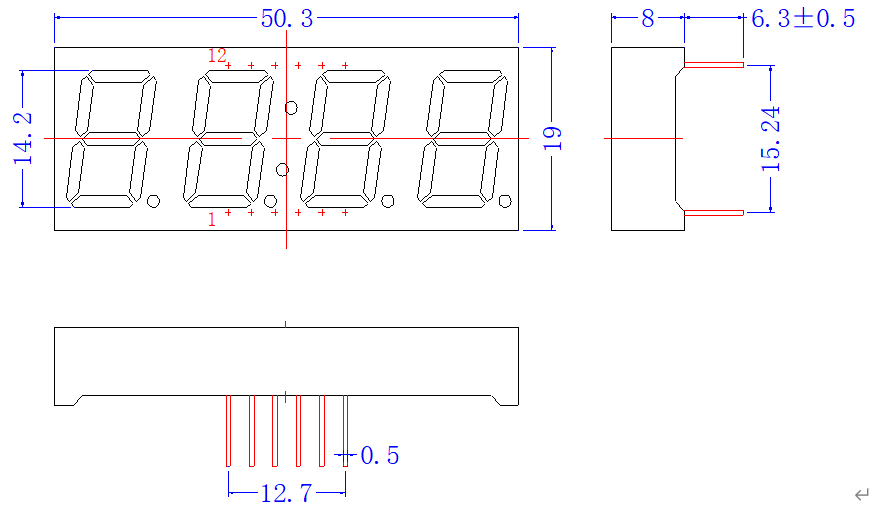

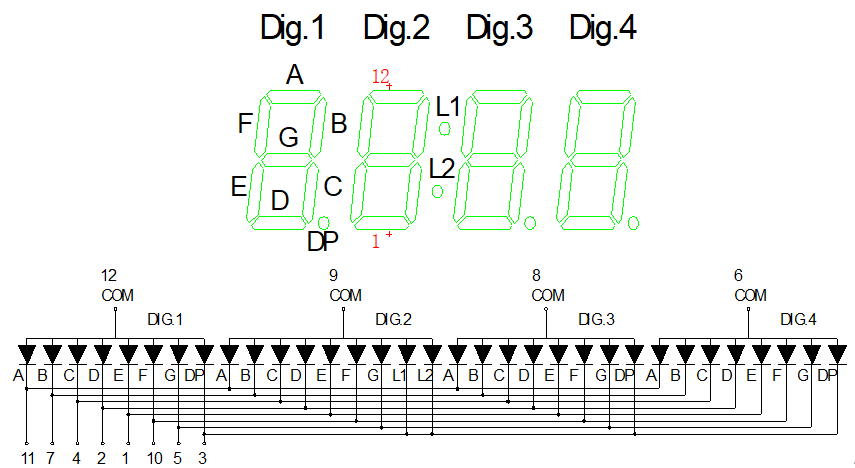

Size and Circuit Diagram
Quality Assurance
1. Products are approved by RoHS, Reach, California 65 and America TSCA;
2. All products are strictly tested before shipment and the defective rate will be controlled within 0.2%. During the guarantee period, we do one-to-one replacement service with new order for small quantity. For defective batch products, we will resend them to you or we can discuss the solution including re-call according to actual situation.
What We Can Do For You?
1. For all models, we can do ultra red, Super red, high red, yellow, yellow green, pure green, white, blue and amber color. Some models can make bi-color, RGB color and Full colors;
2. Common anode (CA) and Common cathode (CC) are optional;
3.Free samples available
4. We can print YOUR LOGO on products.
5.OEM/ODM service Available
