7 segment anzeige
Digit number: single digit-9 digits or OEM available
Dight height: from 0.28'' to 8''
Digit type: 7 segment/ 14 segment/ 16 segment
Emitted color: red, orange, pure green, blue color, yellow, yellow green, white etc. upon your requirement
Common cathode/anode upon your requirement
Surface color: black/ grey
Product Description

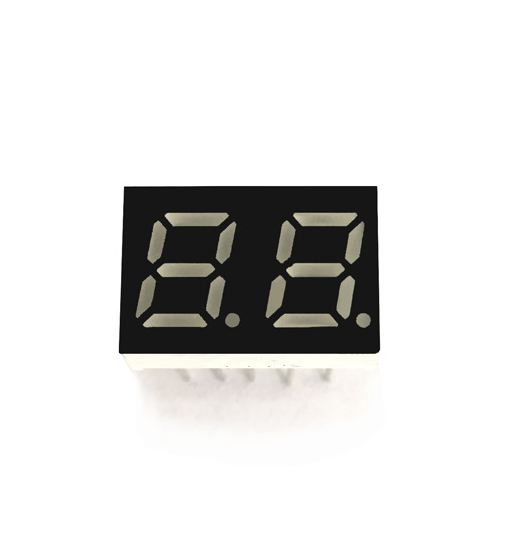

| Part No. | JYA2821B | Digit Height | 0.28inch/7mm |
| Dimension | 15x10x6.1mm | Emitted Color | Blue color |
| Digit Number | 2/two | Face Color | Black/grey |
| Epoxy Color | Milky white/clear | Luminous Intensity | 60mcd |
| Polarity | CC/CA | Segment Color | white or same as emitted color |
| If you need other sizes, please contact us. | |||

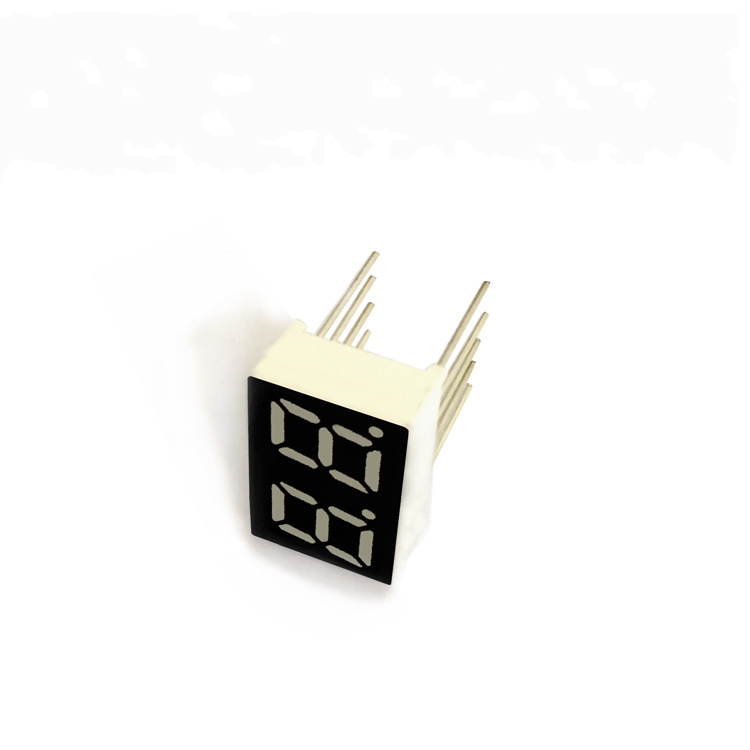

Details Images

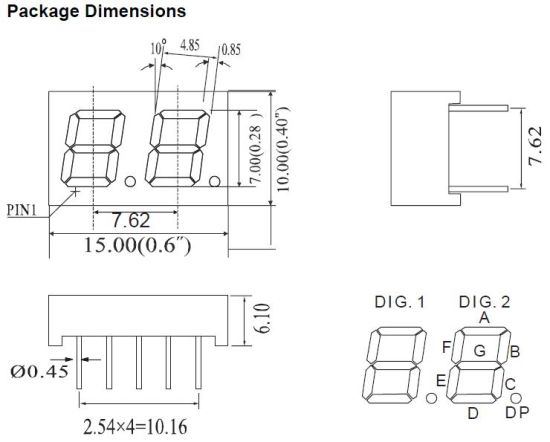

Dimension Part
FAQ:
Q1: Can i get a sample for test?
Yes, we can offer free samples for tests.
Q2: Do you have MOQ for standard products?
Sample/trial order no requirement; the second order shall be no less than 2k/lot.
Q3: Lead time for mass production products
18-25 days based on the complexity and quantity of products
Q4: Custom service
We have R&D team and are able to do customized products according to your requirement. Until now we have developed over 5800 pieces of new models.
Q5: Quality Assurance
All products are approved by RoHS and Reach.
Before shipment, all products are 100% tested. Our products are highly recognized by customers from European Countries, Americas region, East Asia and Africa region etc. We’re quite confident in our product quality.
Q6: After-sale Service
Shipping DOES NOT mean the work is over. We’ll track the arrival of the goods. Shall there is any problem related to products, we will solve it in time.
Q7: Why Choose Us
On the premise of ensuring product quality, we offer more competitive price
Superior and professional pre-sales advise and timely after-sale service
